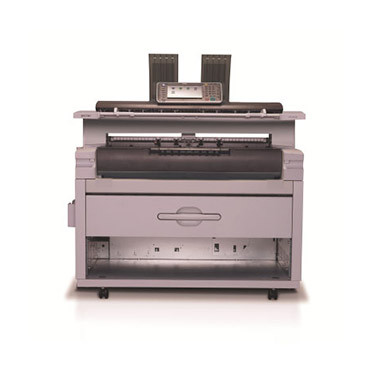

MP W6700SP

The ultimate light mono printer for low and mid-range users. Want high-speed output, high resolution and high reliability? Then this new digital multi-function monochrome printer has been created for you. The one device enables you to print, copy and scan in colour. You can also archive to improve document security and storage plus quickly and easily retrieve archived documents.

  • RICOH MP W6700SP      A
  • High productivity - High-speed monochrome printing at 6.7 pages/minute (A1 horizontal)
  • Colour Scanner - A real scan-to solution
  • Improved ease of use - Thanks to the new colour wide VGA LCD panel it is easy to configure workflows and set up one-touch shortcuts.
  • The smallest footprint - Compact in design and operation


Configuration    Console
Copying/printing process    Electro-photographic printing
Paper source: standard    2 Roll paper feeder
Resolution    600 x 600 dpi
Grayscale printing    2 levels
Zoom    25% to 400% by 0.1% increments
Cutting method    Preset size cut, Synchronised cut, Variable cut
Hard Disk Drive    320 GB (shared with copier/printer/scanner)
Power source    120 - 200 V, 20 A (max.), 60 Hz
Dimensions (W x D x H)    1,250 x 755 x 1,215 mm, 49.2 x 29.7 x 47.8"
Weight    230 kg, 507 lbs.


First copy time from standby mode    D-size: 19 seconds
Copying speed    D-size: 6.7 ppm
Copy modes    Text, Text/Photo, Photo, Drawing, Generation Text, Generation Photo, Pasted Original, Background Line, Highlighter
Copier features    Auto Paper Selection (APS), Auto Reduce/Enlargement, User Auto Reduce/Enlargement, Preset Reduce/Enlargement, Zoom, Size Magnification, Directional Size Magnification (percentage and mm/inch), Fine Magnification, Image Overlay, Format Overlay, Negative/Positive, Mirroring, Double Copy, Repeat Copy, Image Shift - Front/Rear/Left/Right (0 to +/- 200 mm by 1 steps), Preset Stamps, User Preset Stamps, Date Stamp, Page Stamp


Controller board    Embedded
CPU    1.06 GHz
Print speed    6.7 ppm D-size LEF, 3.3 ppm E-size SEF
Print resolution    Up to 600 dpi
Print drivers    Adobe Postscript, HDI
Supported file formats    HP-GL, HP-GL2, HP-RTL, TIFF, CALS, JPEG, PostScript, PDF, Microsoft Office, DWG/DWF
Fonts    European 136 fonts (PS3)
Network interface: standard    100 base-TX/10 base-T Ethernet
Network interface: optional    Wireless LAN IEEE 802.11a/g/n
Network protocol: standard    TCP/IP (IPv4, IPv6)
Supported OS    Windows® XP/Vista/7/8/8.1/2003 Server/2008 Server/2008R2 Server/2012 Server/2012R2 Server, Mac® OS (10.7 or later)
Printer features    Sample Print, Auto Paper Select, Pen Setting, Media Selection, Stamp Setting, Roll Select, Language Setting, Set-up Launcher, Online Help Menu, Multiple Print Sets, Combine Images, Locked Print Document Server, Remote Print via Internet, Magnification, Mirror Setting, Border Setting, Set X and Y Axis, Transparency Mode, Delete After Printing, Engine Status Monitor, Encryption, PDF Batch Print
Supported languages    English, Brazilian Portuguese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish


Color scan    Standard
Scan to multimedia    Standard
Media to print    Print from USB/SD (JPEG/TIFF/PDF)
Scan speed: colour    26.7 mm/s or 1.05 ips (600 dpi)
Scan speed: B/W    80 mm/s or 3.15 ips (600 dpi)
Scan resolution    600 - 600 dpi, TWAIN: up to 1,200 dpi
Scan modes: colour    Text/Photo, Photo
Scan modes: B/W    Text, Text/Photo, Text/Line Art (default), Photo, Drawing, Text/Drawing, Grayscale
Scan detection    Auto Detect, Preset Paper Size, Custom Size
RGB support    Standard
Scan protocols - Network    TCP/IP
Scan protocols - Scan to email    SMTP, POP before SMTP
Scan protocols - Scan to folder    SMB, FTP, NCP
Image density    9 levels of lighter to darker
Edit    Erase Border, Positive/Negative, Mirror Image
Scanner features    Scan-to-Email (SMTP), Scan-to-Folder (SMB, FTP), Scan-to-URL, Scan-to-USB/SD, Network TWAIN, Scan-to-NCP, Scan-to-Document Server
Preview    Full view: 18 x 24", Section preview: 36 x 48"
File formats    Multi page TIFF, Single page TIFF, Multi page PDF, Single page PDF, Single page JPEG, High Compression PDF, PDF/A


Original paper weight    14 - 28 lbs
Output paper weight    52.3 - 110 g/m² (Paper Roll)
Maximum thickness    1 mm, 0.04"


Maximum power consumption    1.44 kW per hour
