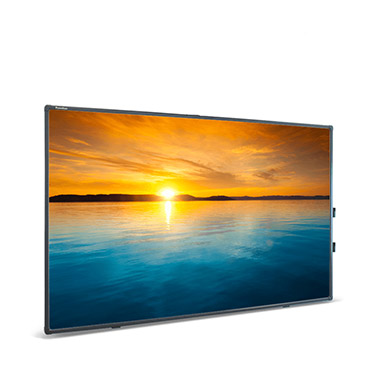

The ActivBoard Touch combines multi-touch functionality, dry-erase writing, and award-winning software to foster a truly interactive learning experience. It provides teachers with a wide range of tools to support their daily instruction at an affordable price.
Multi-Touch Display
Multi-user interactivity with 10 simultaneous touch points and two styluses.
Dry-Erase Surface
Provides teachers and students with a 3-in-1 surface that offers optimal viewing, multi-user interaction, and dry-erase writing.
Plug & Play Design
Connect a computer to the ActivBoard Touch to power on the system and instantly get started.
|
Diagonal Size |
Available in two sizes: 78" and 88" |
|||
|
Aspect Ratio |
78": 4:3 |
|||
|
88": 16:10 |
||||
|
Dry Erase Surface |
Yes |
|||
|
INTERACTIVITY |
||||
|
Compatibility |
Windows®, Mac OS®, Linux® |
|||
|
Touch Technology |
Infrared |
|||
|
Surface Area Resolution |
30 DPI |
|||
|
Touch Resolution |
Without Driver 7680 x 4320 px, with Driver 32767 x 32767 px |
|||
|
Touch Refresh Rate |
£100 Hz |
|||
|
Object Size Resolution |
4 mm diameter |
|||
|
Multi-Touch |
lOTouch Points |
|||
|
Touch Response Time (First Click and Continuous Writing) |
<10 ms |
|||
|
Positioning Accuracy |
2mm |
|||
|
User Input |
Touch or ergonomic stylus (supplied] |
|||
|
CONNECTIVITY |
||||
|
USB 2.0 |
x l |
|||
|
POWER |
||||
|
Power Requirements |
USB Powered |
|||
|
Maximum Power Consumption |
<2.0W |
|||
|
ENVIRONMENTAL |
||||
|
Operating Temperature |
-10°C to +50°C (+14°F to +122°F] |
|||
|
Storage Temperature |
-20°C to +60°C (~4°F to +140°F] |
|||
|
Storage Humidity |
Humidity [non-condensing] 0% to 90% |
|||
|
What's in the box |
ActivBoard xl, Stylus x2. Stylus holder x2, 5m USB Extension Cable xl, Wall Mounting Brackets x2. Installation and User Guide xl, ClassFlow and Activlnspire Professional* included |
|
||
|
COMPLIANCE & CERTIFICATION |
|
|||
|
Regulatory Certification |
CE, FCC, 1C, UL/CUL, CB, CQC |
|
||
|
|
||||
|
OPTIONS SOLD SEPARATELY |
|
|||
|
Stands & Projectors |
Compatible with Promethean's existing stands and projectors, including a Wall Mount, Adjustable Wall Mount, Short Throw Projector, and Ultra Short Throw Projector. |
|
||
|
ActivSoundBar |
The ActivSoundBar is a powerful, high-quality sound option for your ActivBoard Touch. |
|
||
|
Digital Pen |
Add the digital pen accessory for a natural writing and navigation experience. |
|
||
|
PHYSICAL SPECIFICATIONS |
78" Size |
88" Size |
|
Overall Dimensions |
1656x 1260 x 36 mm (65.2x 49.6 x 1.4 in] |
1970 x 1260 x 36 mm (77.6 x 49.6 x 1.4 in] |
|
Packed Dimensions |
1745 x 1403 x 93 mm (68.7 x 55.2 x 3.7 in) |
2063 x 1403 x 93 mm (81.2 x 55.2 x 3.7 in] |
|
Net Weight |
16.7 kg (36.8 lbs) |
19.8 kg (43.7 lbs) |
|
Packed Weight |
25 kg [55 lbs) |
28.85 kg (63.6 lbs) |
