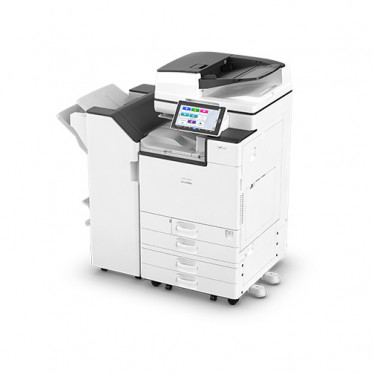

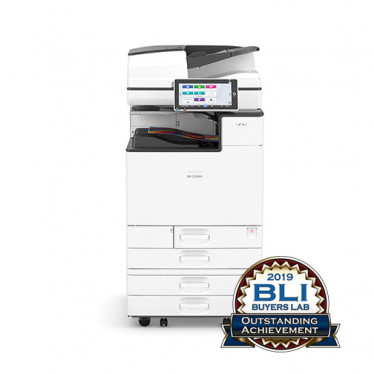

Meet your new office manager. Ricoh’s IM C5500A colour all in one printer will quickly meet your document needs. Designed for demanding, higher volume applications, it will scan and distribute information, print complex multi-page documents and neatly finish them, ready for distribution. Ricoh’s Smart Operation Panel simplifies operation. Business users can connect seamlessly and print from / scan to their smart phones and tablets. And, with tap and go Quick Authentication, security is assured.
To save time, double sided documents are scanned in a single pass and can be uploaded directly to your document management system. Colour and black and white output is delivered at the same express speed and to reduce manual handling requirements, documents can be folded, stapled and punched inline. Offering genuine IPDS support, the IM C5500A will even print mission critical transactional documents, such as invoices and dispatch notes, running them overnight to maximise availability.
GENERAL
Warm-up time 21 seconds
First output speed: B/W 2.9 seconds
First output speed: full colour 4.2 seconds
Continuous output speed 55 ppm
Memory: standard 2 GB
Memory: maximum 4 GB
HDD: standard 320 GB
HDD: maximum 320 GB
ARDF capacity 100 sheets
SPDF capacity 220 sheets
Weight 101.4 kg
Dimensions: W x D x H 587 x 685 x 963 mm
Power source 220 - 240 V, 50 ̸ 60 Hz
COPIER
Multiple copying Up to 999 copies
Resolution 600 dpi
Zoom From 25% to 400% in 1% steps
PRINTER
CPU ApolloLake E3940 1.6 GHz
Printer language: standard PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation)
Printer language: option Genuine Adobe® PostScript®3™, IPDS, PictBridge, PDF Direct from Adobe®
Print resolution: maximum 1,200 x 1,200 dpi
Network interface: standard Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B
Network interface: option Bi-directional IEEE 1284/ECP, Wireless LAN (IEEE 802.11a/b/g/n), Additional NIC (2nd port)
Mobile printing capability Apple AirPrint™, Mopria, Google Cloud Print, NFC, Ricoh Smart Device Connector
Windows® environments Windows® 7, Windows® 8.1, Windows® 10, Windows® Server 2008, Windows® Server 2008R2, Windows® Server 2012R2, Windows® Server 2016
Mac OS environments Macintosh OS X Native v10.11 or later
UNIX environments UNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux Enterprise, IBM® AIX
SAP® environments SAP® R/3®, SAP® S/4®
Other supported environments IBM iSeries
SCANNER
Scanning speed: ARDF 80 ipm (200/300 dpi)
Scanning speed: SPDF 120 ipm (simplex)/240 ipm (duplex)
Resolution: maximum 1,200 dpi
File formats Single Page TIFF, Single page JPEG, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, Multi page High compression PDF, Multi page PDF/A
Scan modes E-mail, Folder, USB, SD Card
FAX
Circuit PSTN, PBX, PSTN, PBX
Transmission speed 2 seconds
Modem speed: maximum 33.6 Kbps
Resolution: standard 8x3.85 line̸ mm, 200x100 dpi
Resolution: option 16x15.4 line/mm, 400x400 dpi
Compression method MH, MR, MMR, JBIG
Scanning speed 81 spm
Scanning speed - DF used A4/LT SEF, A4/LT LEF Image rotation
Scanning speed - SPDF used A4/LT SEF, A4/LT LEF Image rotation
Memory: standard 4 MB, (320 pages)
Memory: maximum 60 MB, (4,800 pages)
PAPER HANDLING
Recommended paper size - Standard paper tray(s): SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes
Recommended paper size - Optional paper tray(s): SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes
Recommended paper size - Bypass tray: SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes, Custom Size paper
Paper input: standard 1,200 sheets
Paper input: maximum 4,700 sheets
Paper output: standard 500 sheets
Paper output: maximum 3,625 sheets
Paper weight - Trays: 60 - 300 g/m²
Paper weight - Bypass: 52 - 300 g/m²
Paper weight - Duplex: 52 - 256 g/m²
Paper types Plain paper, Recycle paper, Special paper, Color paper, Letterhead, Cardstock, Preprinted paper, Bond paper, Coated paper, Envelope, Gloss paper, Label paper, OHP
ECOLOGY
Power consumption: max. Less than 1,850 W
Power consumption operation: B/W 821.7 W
Power consumption operation: Full colour 935.4 W
Power consumption: ready 59 W
Power consumption: sleep 0.62 W
TEC* 0.71 kWh⁄week
OUTPUT TRAYS AND FINISHER OPTIONS
1x 550-sheet paper tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
1x 550-sheet paper tray - Paper weight: 60-300 g/m²
2x 550-sheet paper tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
2x 550-sheet paper tray - Paper weight: 60-300 g/m²
2,000-sheet Large capacity tray - Paper size: A4
2,000-sheet Large capacity tray - Paper weight: 60-300 g/m²
1,500-sheet side Large capacity tray - Paper size: A4, B5
1,500-sheet side Large capacity tray - Paper weight: 60-300 g/m²
1,000-sheet Hybrid finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
1,000-sheet Hybrid finisher - Paper weight: 52-300 g/m²
1,000-sheet Hybrid finisher 1,000 sheets
1,000-sheet Hybrid finisher - Staple capacity: 50 sheets
1,000-sheet Hybrid finisher - Staple paper size: A3, A4, A5, B4, B5
1,000-sheet Hybrid finisher - Staple paper weight: 52-105 g/m²
1,000-sheet Hybrid finisher - Staple positions: Top, Bottom, 2 Staples
3,000-sheet finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
3,000-sheet finisher - Paper weight: 52-300 g/m²
3,000-sheet finisher - Stack capacity: 3,000 sheets
3,000-sheet finisher - Staple capacity: 50 sheets
3,000-sheet finisher - Staple paper size: A3, A4, A5, B4, B5
3,000-sheet finisher - Staple paper weight: 52-105 g/m²
3,000-sheet finisher - Staple positions: Top, Bottom, 2 staples, Top-slant
1,000-sheet Booklet finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
1,000-sheet Booklet finisher - Paper weight: 52-300 g/m²
1,000-sheet Booklet finisher - Stack capacity: 1,000 sheets
1,000-sheet Booklet finisher - Staple capacity: 50 sheets
1,000-sheet Booklet finisher - Staple paper size: A3, A4, A5, B4, B5
1,000-sheet Booklet finisher - Staple paper weight: 52-105 g/m²
1,000-sheet Booklet finisher - Staple positions: Top, Bottom, 2 staples, Booklet
2,000-sheet Booklet finisher - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
2,000-sheet Booklet finisher - Paper weight: 52-300 g/m²
2,000-sheet Booklet finisher - Stack capacity: 2,000 sheets
2,000-sheet Booklet finisher - Staple capacity: 50 sheets
2,000-sheet Booklet finisher - Staple paper size: A3, A4, A5, B4, B5
2,000-sheet Booklet finisher - Staple paper weight: 52-105 g/m²
2,000-sheet Booklet finisher - Staple positions: Top, Bottom, 2 staples, Booklet
500-sheet Internal finisher - Paper size: A3, A4, A5, A6, B4, B5
500-sheet Internal finisher - Paper weight: 52-300 g/m²
500-sheet Internal finisher - Stack capacity: 500 sheets
500-sheet Internal finisher - Staple capacity: 50 sheets
500-sheet Internal finisher - Staple paper size: A4, A5, B4, B5
500-sheet Internal finisher - Staple paper weight: 52-105 g/m²
500-sheet Internal finisher - Staple positions: Top, Bottom, 2 staples
Internal shift tray - Tray capacity: 250 sheets
Internal shift tray - Paper size: SRA3, A3, A4, A5, A6, B4, B5, B6
Internal shift tray - Paper weight: 52-300 g/m²
One-bin tray - Tray capacity: 125 sheets
One-bin tray - Paper size: A3, A4, A5, B4
One-bin tray - Paper weight: 52-300 g/m²
CONSUMABLES
Toner (black) 33,000 prints
Toner: cyan/magenta/yellow 22,500 prints
