ricoh

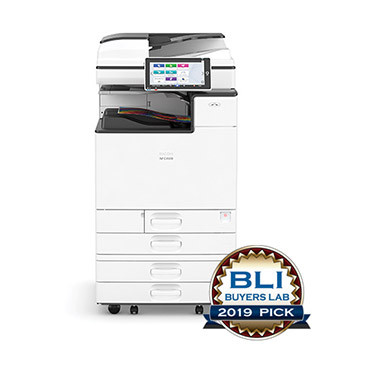

IM C4500

A powerful all-rounder, this productive 45 ppm colour all in one printer ticks all  the boxes. Part of Ricoh's flagship A3 colour multifunctional range, it is designed to meet demanding higher usage requirements and delivers high quality colour and black-and-white print output at speed. Indeed, equipped with an optional EFI Fiery print server, it will produce print of a quality that is more usually associated with professional print shops!

  • imc4500_a
  • imc4500_b
  • imc4500_c
  • imc4500_d

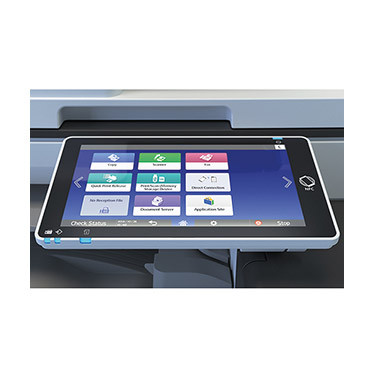

Ready in an instant, the intuitive 10.1 inch Smart Operation Panel simplifies operation. The IM C4500 quickly scans paper-based information and uploads it directly to your electronic document management system. The intelligent technology supports mobile working. Business users can connect seamlessly and print from/scan to smart phones and tablets. And, with tap and go Quick Authentication, security is always ensured. Finishing settings, such double sided printing, folding, stapling and punching are easily applied at the printer.



  • Productive 45 ppm A3 all in one printer provides all round support
  • Optional EFI Fiery print server provides greater control over colour management
  • To safeguard information security, the Smart Operation Panel supports Quick Authentication
  • Mobile workers can connect seamlessly and print from and scan to their smart phones and tablets
  • Digitised documents can be saved to a Cloud-based service or uploaded directly to your electronic document management

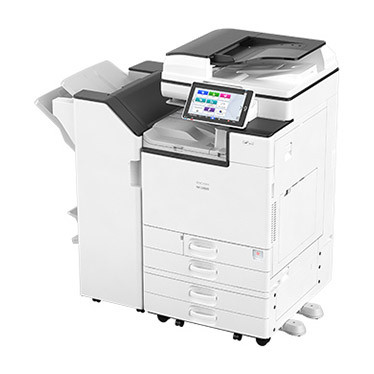

  • There is a choice of five finishing systems, including a hybrid finisher that neatly crimps document sets for a finger-friendly finish
  • To meet enterprise requirements, Ricoh offers 20, 25, 30, 35, 45, 55 and 60 ppm versions of the same device

GENERAL

Warm-up time

21 seconds

First output speed: B/W

3.6 seconds

First output speed: full colour

5.4 seconds

Continuous output speed

45 ppm

Memory: standard

2 GB

Memory: maximum

4 GB

HDD: standard

320 GB

HDD: maximum

320 GB

ARDF capacity

100 sheets

SPDF capacity

220 sheets

Dimensions: W x D x H

587 x 685 x 913 mm

COPIER

Multiple copying

Up to 999 copies

Zoom

From 25% to 400% in 1% steps

PRINTER

CPU

ApolloLake E3940 1.6 GHz

Printer language: standard

PCL5c, PCL6, PostScript 3 (emulation), PDF direct (emulation)

Printer language: option

Genuine Adobe ®PostScript®3™, PictBridge, PDF Direct from Adobe®

Print resolution: maximum

1,200 x 1,200 dpi

Network interface: standard

Ethernet 10 base-T/100 base-TX/1000 base-T, USB Host I/F Type A, USB Device I/F Type B

Network interface: option

Bi-directional IEEE 1284/ECP, Wireless LAN (IEEE 802.11a/b/g/n), Additional NIC (2nd port)

Mobile printing capability

Apple AirPrint™, Mopria, Google Cloud Print, NFC, Ricoh Smart Device Connector

Windows® environments

Windows® 7, Windows® 8.1, Windows® 10, Windows® Server 2008, Windows® Server 2008R2, Windows® Server 2012R2, Windows® Server 2016

Mac OS environments

Macintosh OS X Native v10.11 or later

UNIX environments

UNIX Sun® Solaris, HP-UX, SCO OpenServer, RedHat® Linux Enterprise, IBM® AIX

SAP® environments

SAP® R/3®, SAP® S/4®

Other supported environments

IBM iSeries

SCANNER

Scanning speed: ARDF

80 ipm (200/300 dpi)

Scanning speed: SPDF

120 ipm (simplex)/240 ipm (duplex)

Resolution: maximum

1,200 dpi

Compression method

TIFF (MH, MR, MMR, JBIG2), Grayscale

File formats

Single Page TIFF, Single page JPEG, Single page High compression PDF, Single page PDF/A, Multi page TIFF, Multi page PDF, Multi page High compression PDF, Multi page PDF/A

Scan modes

E-mail, Folder, USB, SD Card

FAX

Circuit

PSTN, PBX

Transmission speed

2 seconds

Modem speed: maximum

33.6 Kbps

Resolution: standard

8x3.85 line/mm, 200x100 dpi

Resolution: option

16x15.4 line/mm, 400x400 dpi

Compression method

MH, MR, MMR, JBIG

Scanning speed

68 spm

Memory: standard

4 MB, (320 pages)

Memory: maximum

60 MB, (4,800 pages)

PAPER HANDLING

Recommended paper size - Standard paper tray(s):

SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes

Recommended paper size - Optional paper tray(s):

SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes

Recommended paper size - Bypass tray:

SRA3, A3, A4, A5, A6, B4, B5, B6, Envelopes, Custom Size paper

Paper input: standard

1,200 sheets

Paper input: maximum

4,700 sheets

Paper output: standard

500 sheets

Paper output: maximum

3,625 sheets

Paper weight - Trays:

60 - 300 g/m²

Paper weight - Bypass:

52 - 300 g/m²

Paper weight - Duplex:

52 - 256 g/m²

Paper types

Plain paper, Recycle paper, Special paper, Color paper, Letterhead, Cardstock, Preprinted paper, Bond paper, Coated paper, Envelope, Gloss paper, Label paper, OHP

ECOLOGY

Power consumption: max.

Less than 1,850 W

Power consumption operation: B/W

644.6 W

Power consumption operation: Full colour

729.9 W

Power consumption: ready

59 W

Power consumption: sleep

0.62 W

TEC

1.8 kWh

OUTPUT TRAYS AND FINISHER OPTIONS

2x 550-sheet paper tray - Paper size:

SRA3, A3, A4, A5, A6, B4, B5, B6

2x 550-sheet paper tray - Paper weight:

60-300 g/m²

1x 550-sheet paper tray - Paper size:

SRA3, A3, A4, A5, A6, B4, B5, B6

1x 550-sheet paper tray - Paper weight:

60-300 g/m²

2,000-sheet Large capacity tray - Paper size:

A4

2,000-sheet Large capacity tray - Paper weight:

60-300 g/m²

1,500-sheet side Large capacity tray - Paper size:

A4, B5

1,500-sheet side Large capacity tray - Paper weight:

60-300 g/m²

1,000-sheet Hybrid finisher - Paper size:

SRA3, A3, A4, A5, A6, B4, B5, B6

1,000-sheet Hybrid finisher - Paper weight:

52-300 g/m²

1,000-sheet Hybrid finisher

1,000 sheets

1,000-sheet Hybrid finisher - Staple capacity:

50 sheets

1,000-sheet Hybrid finisher - Staple paper size:

A3, A4, A5, B4, B5

1,000-sheet Hybrid finisher - Staple paper weight:

52-105 g/m²

1,000-sheet Hybrid finisher - Staple positions:

Top, Bottom, 2 Staples

1,000-sheet Booklet finisher - Paper size:

SRA3, A3, A4, A5, A6, B4, B5, B6

1,000-sheet Booklet finisher - Paper weight:

52-300 g/m²

1,000-sheet Booklet finisher - Stack capacity:

1,000 sheets

1,000-sheet Booklet finisher - Staple capacity:

50 sheets

1,000-sheet Booklet finisher - Staple paper size:

A3, A4, A5, B4, B5

1,000-sheet Booklet finisher - Staple paper weight:

52-105 g/m²

1,000-sheet Booklet finisher - Staple positions:

Top, Bottom, 2 staples, Booklet

2,000-sheet Booklet finisher

SRA3, A3, A4, A5, A6, B4, B5, B6, 52-300 g/m², 2,000 sheets, 50 sheets, A3, A4, A5, B4, B5, Booklet

2,000-sheet Booklet finisher - Staple paper weight:

52-105 g/m²

500-sheet Internal finisher - Paper size:

A3, A4, A5, A6, B4, B5

500-sheet Internal finisher - Paper weight:

52-300 g/m²

500-sheet Internal finisher - Stack capacity:

500 sheets

500-sheet Internal finisher - Staple capacity:

50 sheets

500-sheet Internal finisher - Staple paper size:

A4, A5, B4, B5

500-sheet Internal finisher - Staple paper weight:

52-105 g/m²

500-sheet Internal finisher - Staple positions:

Top, Bottom, 2 staples

Internal shift tray - Tray capacity:

250 sheets

Internal shift tray - Paper size:

SRA3, A3, A4, A5, A6, B4, B5, B6

Internal shift tray - Paper weight:

52-300 g/m²

One-bin tray - Tray capacity:

125 sheets

One-bin tray - Paper size:

A3, A4, A5, B4

One-bin tray - Paper weight:

52-300 g/m²

CONSUMABLES

Toner: black

33,000 prints

Toner: cyan/magenta/yellow

22,500 prints
